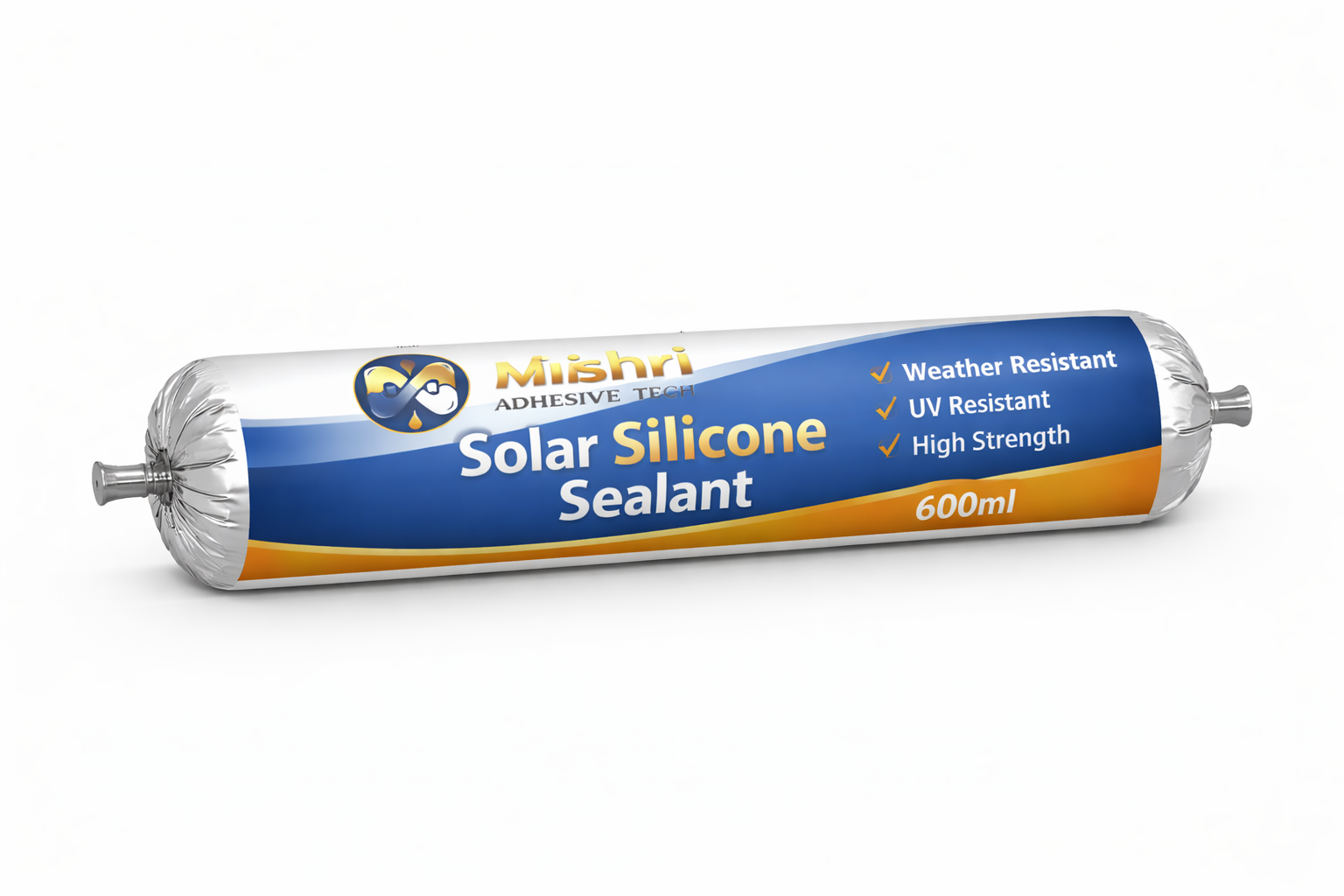

Solar Silicone Sealant
Flexibond 7110W is a non-flowing, single component deoxime silicone RTV adhesive sealant, suitable for bonding and sealing of solar panel frames
Categories:
Solar Adhesive- One component RTV with good thixotropy
- Short tack free time and fast curing speed
- Excellent adhesion performance
- Excellent weather and UV resistance
- Excellent dielectric properties
- Comply with RoHS/REACH
| Item | Value |
|---|---|
| Appearance | White liquid |
| Extrusion rate (g/min) | 30-130 |
| Density (g/cm³) | 1.45-1.53 |
| Tack-free time (min) | 5-15 |
| A.B mixing ratio (quality ratio) | 6:1 |
| Rate of cure (mm/24h) | ≥2.0 |
| Item | Value |
|---|---|
| Shore A hardness | 40-60 |
| Tensile strength (Mpa) | ≥2.0 |
| Elongation at break (%) | ≥220 |
| Shear strength (Mpa) | ≥1.5 |
| Breakdown voltage strength (kV/mm) | ≥18 |
| Volumetric resistivity (Ω·cm) | ≥0.5*1015 |
| Flame retardant rating | 94-HB |
Note: extrusion rate testing condition: the inner diameter of nozzle is (4±5%)mm, pressure is (0.20±0.01)Mpa
- Solar PV module frame and junction box bonding and sealing
- Electronic components, circuit boards, sensors and instruments bonding, sealing and reinforcement
- Power modules and new energy battery modules bonding and sealing
Cleaning:
Clean surface with solvent, such as, alcohol, acetone, methyl ethyl ketone, etc.to ensure the substrates surface is cleared thoroughly
Application of sealant:
Cut nozzle to right shape and size according to the different application demand. Apply the sealant tothe surface of the well cleaned substrates, then cover the other side where need to be bonded. The application site needs to be well ventilated.
Storage:
This product is non-dangerous, can be stored and transported as normal chemical
- 290kg/Drum
- 270kg/Drum
- 600ml/cartridge, 24pcs/box
- 400ml/cartridge, 24pcs/box
- This product is recommended to be stored below 25°C and 70%RH humidity
- Shelf Life: 12 months
Be away from light and high heat and stored in a cool and ventilated place.
Used only in well-ventilated areas and avoid contact with eyes and skin. If eyes contact with the sealant, wash with water and seek medical attention immediately. In case of contact with clothes and skin, soakin warm water for a while and then it will remove. Keep away from children. Please refer to the product MSDS for details.
